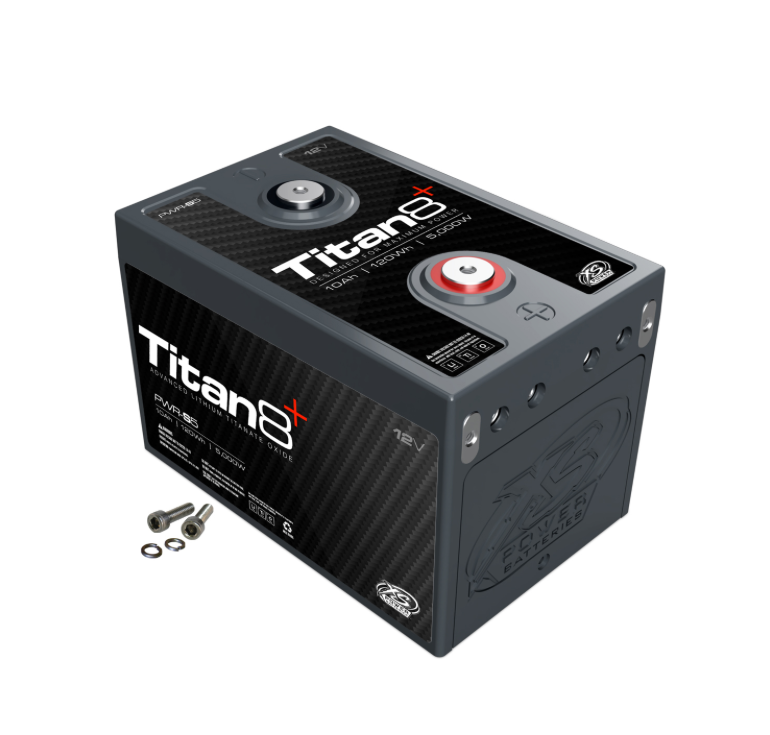

XS Power PWR-S5 Lithium Module, 5,000 Watt Coverage
Couldn't load pickup availability
Product Details
Power Modules – Designed for Peak Power. This Titan8 Series Lithium Titanate Oxide (LTO) series uses a very high power lithium cell that is designed for very high burst output (up to 100 times its capacity) as well as very high charge current (30-60 times its capacity). This translates to a single 10Ah module that can support burst current up to 1,000A, and can accept 300A of continuous charge current. The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12V, 24V, 36V, or any configuration imaginable.
Lithium Titanate Battery
Power Modules – Designed for Peak Power
Weight Lbs.. – 8lbs
Weight Kgs. – 3.63kgs
Length – 7.4 in
Height – 5 in
Width – 4.85 in
M6 Terminal Hardware Included
1 Year Warranty
