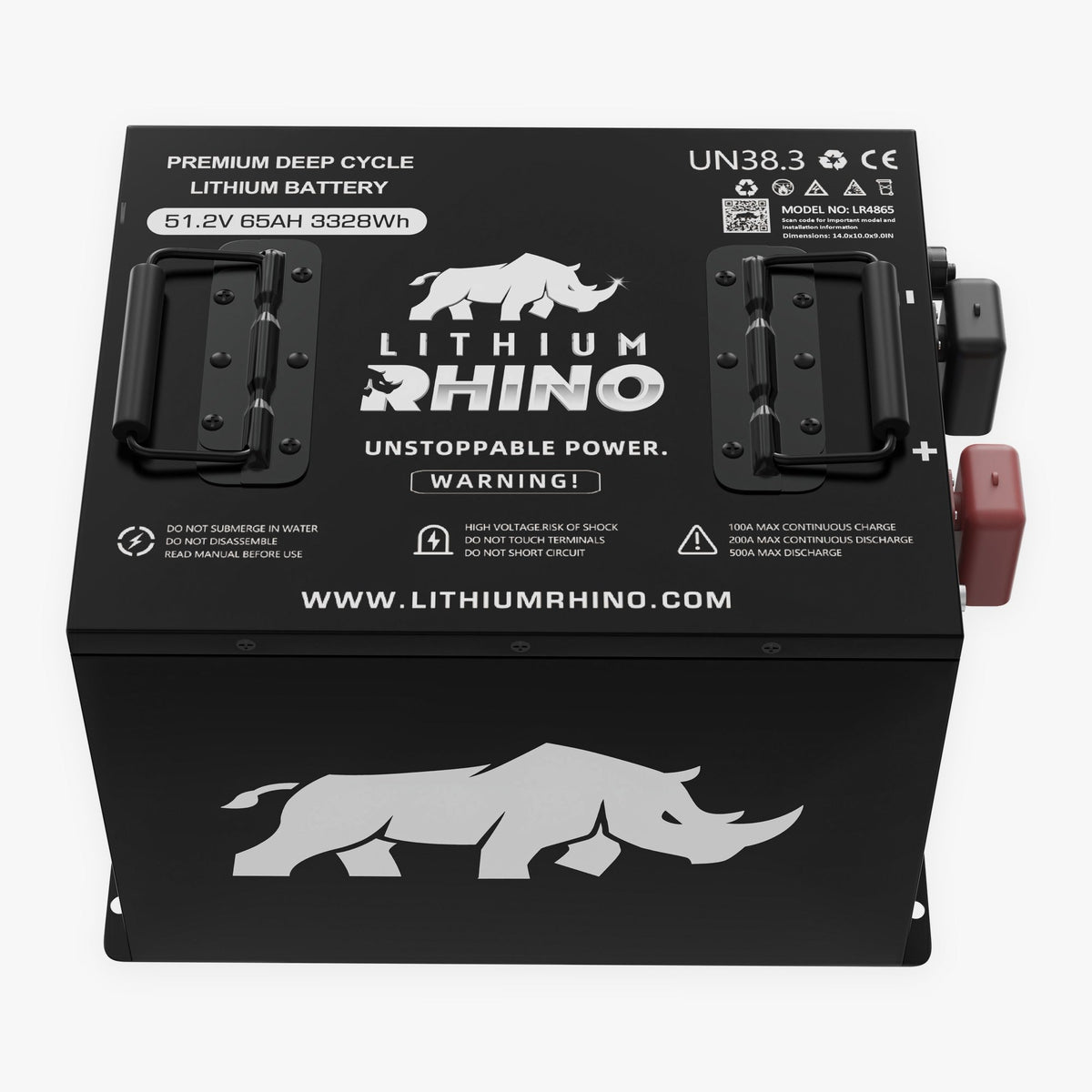

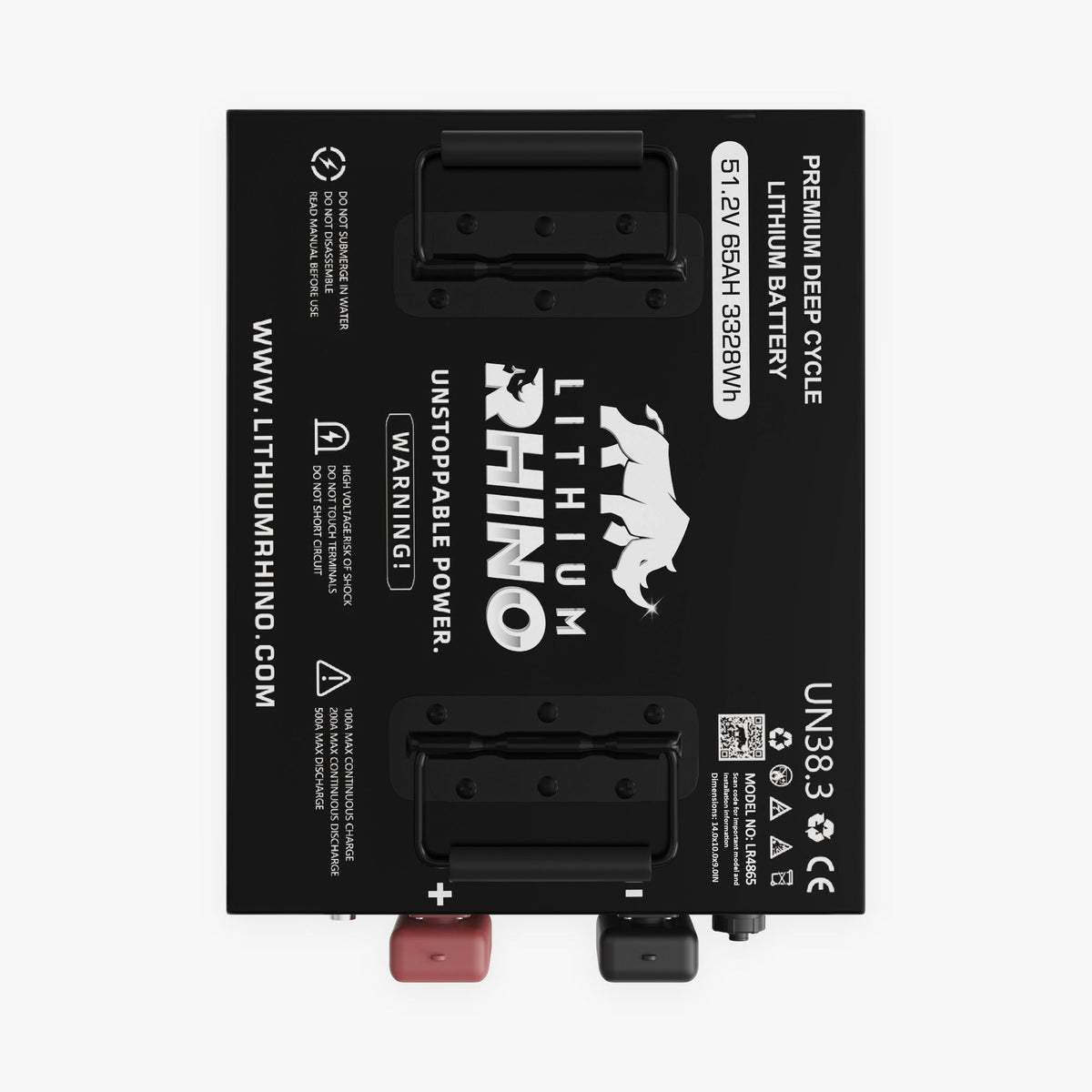

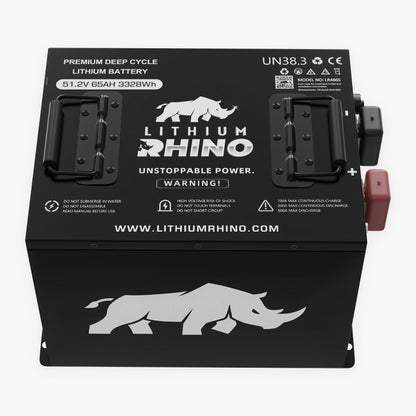

Lithium Rhino LR51V65AH 48V 65Ah Lithium Golf Cart Battery Conversion Kit – LiFePO4 3.3kWh

When the lead-acid bank in a 48V cart is due, the question at our counter is usually the same: buy another set of batteries, or switch to lithium this time? For owners who want to switch without cutting or drilling anything, the Lithium Rhino LR51V65AH is the 48V lithium golf cart battery conversion kit we'd start with. It sits in the middle of the Lithium Rhino 48V range, with more capacity than the 50Ah kit and a case that still mounts with hardware alone.

Here's what 65Ah gets you in practice. Lithium Rhino rates this pack for 27+ miles per charge, about a third more than the 50Ah model.

What the 48V 65Ah Kit Replaces

This single 48 volt lithium golf cart battery stands in for a full lead-acid bank of six 8V or four 12V batteries. At 14 by 10 by 9 inches and 63 pounds, it takes a fraction of the tray space and weight of the batteries it replaces. Mounting brackets aren't needed on this size, so the kit leaves them out, and the hardware in the box secures it. Budget two to four hours for the swap.

Before you order, call us with your cart's year, make and model and we'll check it before you buy. Two carts that look alike on the path can have different trays underneath.

Charging and the Round Gauge

Lithium doesn't want the charge cycle a lead-acid charger delivers, so that old charger is done. The kit includes an 18A fast charger with a charge port adapter for a standard 110V outlet. On the dash, a full-color round gauge shows two pages of battery information and doubles as the power button, and the Rhino app on your phone adds per-cell detail over Bluetooth. Around the house in Mentor or out at a lake lot in Madison, you'll know the state of charge before you pull out.

What's in the Kit

• LR51V65AH 48V 65Ah LiFePO4 battery
• 18A fast charger
• Color round two-page LCD gauge with power button
• Charge port adapter
• Heavy-gauge wires
• Mounting hardware (brackets not required on 65Ah models)
• Lead-acid removal strap
• Safety gloves and safety glasses
• Access to the free Rhino app over Bluetooth

Applications

• 48V golf carts: the everyday family or course cart
• 48V neighborhood carts and LSVs, fit checked first
• Campground and lake-lot carts
• 48V hunting buggies and utility carts on moderate terrain

A word on water: this pack carries an IP65 rating. Rain and hose spray are fine. A boat deck isn't, so this kit stays on land.

Key Features

• Grade-A LiFePO4 prismatic cells rated for 6,000+ cycles
• BMS rated 150A continuous and 500A peak
• No drilling and no brackets needed
• RS485 and CAN communication ports on the rear panel
• Bluetooth to the Rhino app: live state of charge, voltage, per-cell temperature, fault alerts and cycle history
• Cells balanced within ±20mV

Specifications

Downloadable Resources

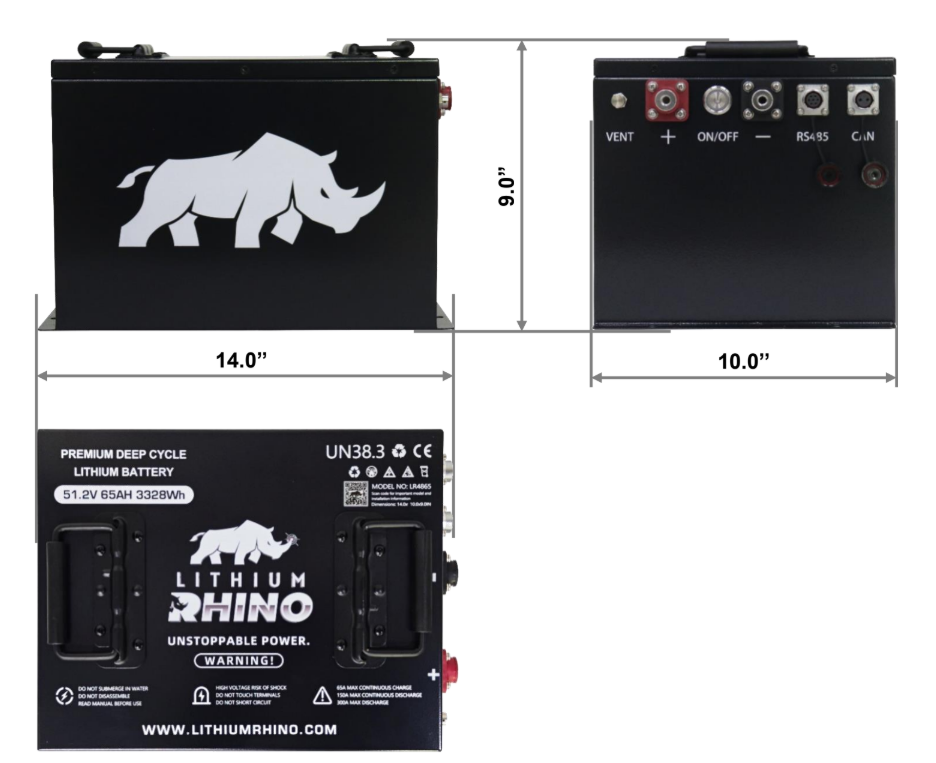

• LR51V65AH Spec Sheet / Dimension Drawing

Warranty: 8 Years on the Battery

Lithium Rhino backs the battery (cells, BMS and built-in electronics) for eight years from the date you buy it, and the claim runs through our counter:

• Years 1–6: repair or replacement at no cost to you, shipping included.
• Years 7–8: repair or replacement for a flat $500 deductible; Lithium Rhino covers the rest.
• Kit components (the charger, gauge and cables): two years of full replacement, then replacement at half of current list price for the life of the battery.

Register the battery with Lithium Rhino within 120 days of purchase. An unregistered battery is covered for one year only; we'll do the registration with you at the counter. Physical damage, water intrusion, improper installation and charging with a charger Lithium Rhino hasn't approved are not covered, so stay with the charger that came in the kit.

Local Pickup for East-Side Cart Owners

Pickup happens at our Willoughby location, which puts it within easy reach of Willowick, Eastlake and Mentor-on-the-Lake. Call with your cart's details and we'll line up the fit before you make the drive.
