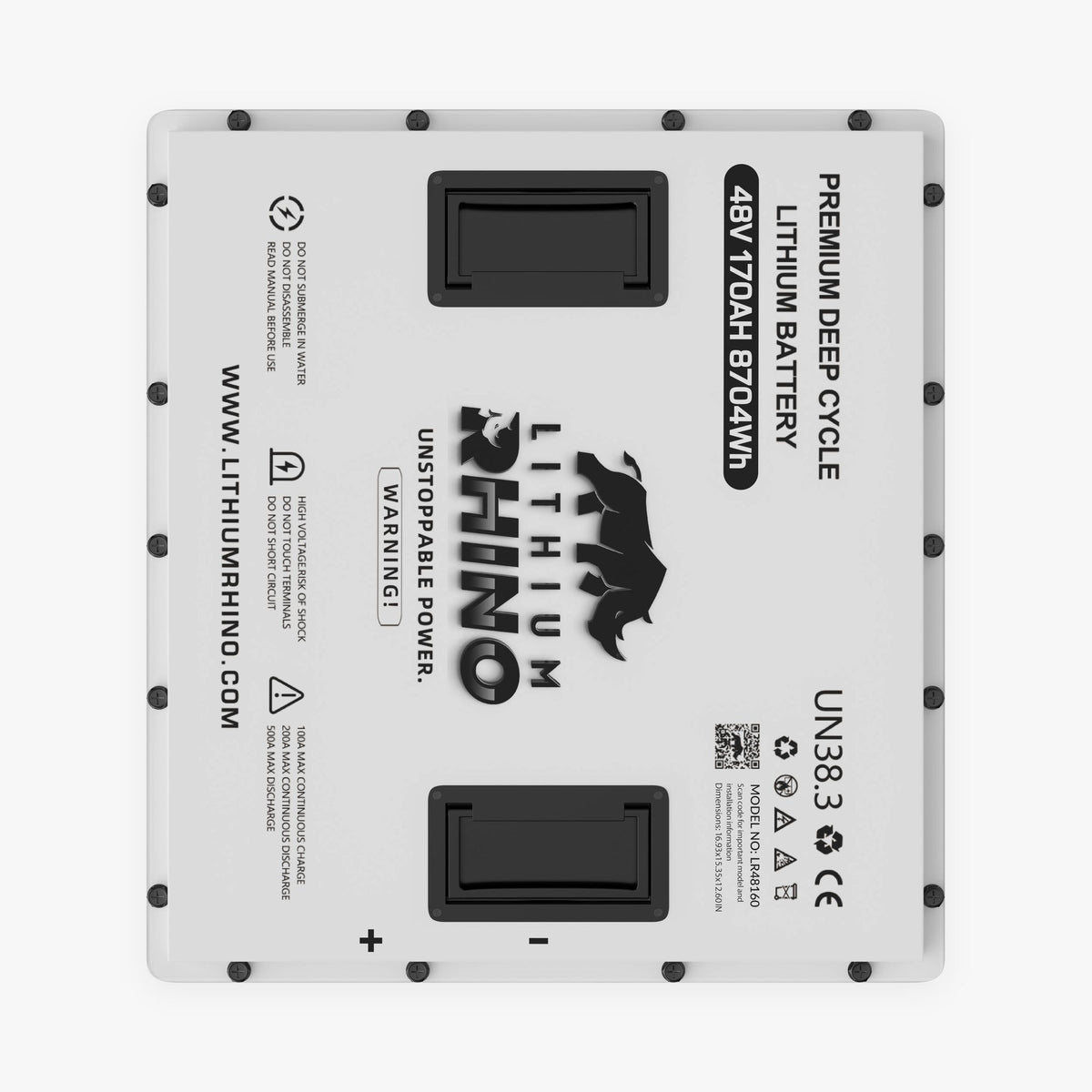

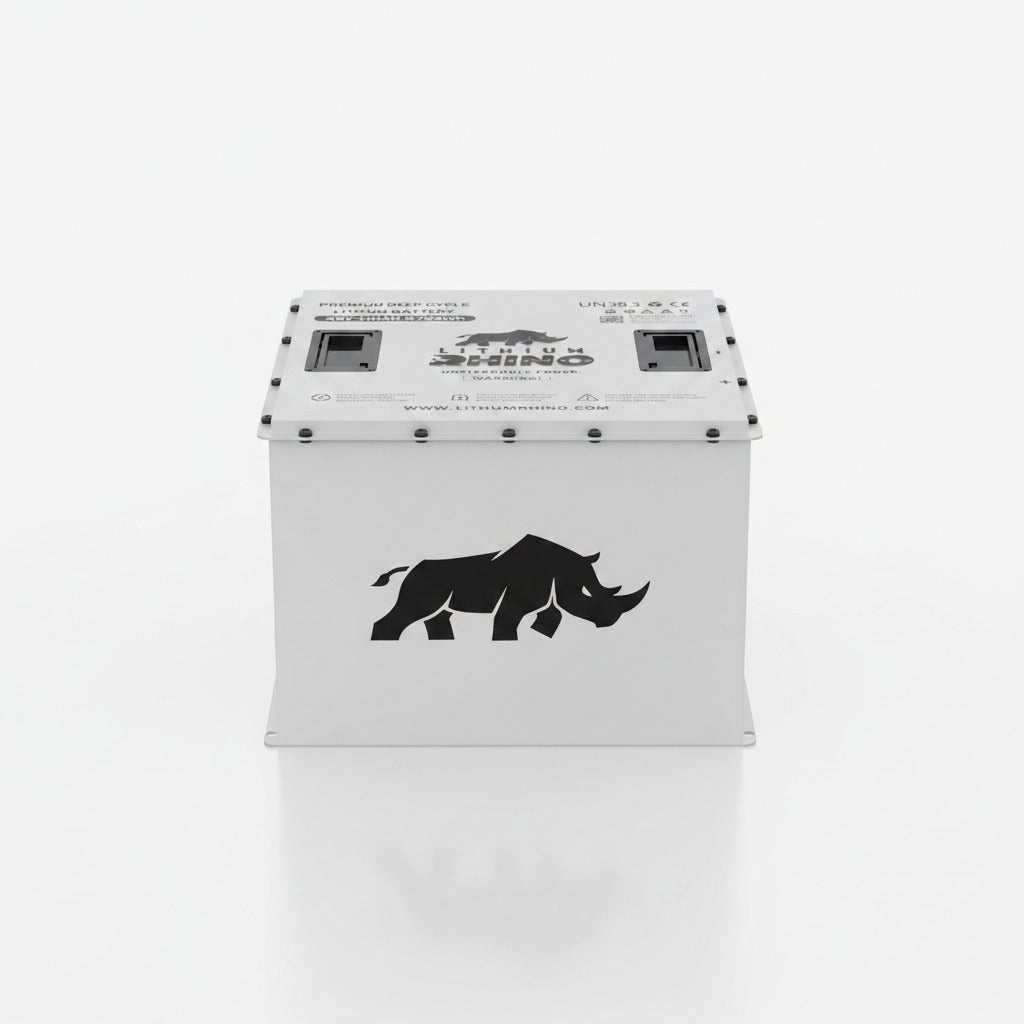

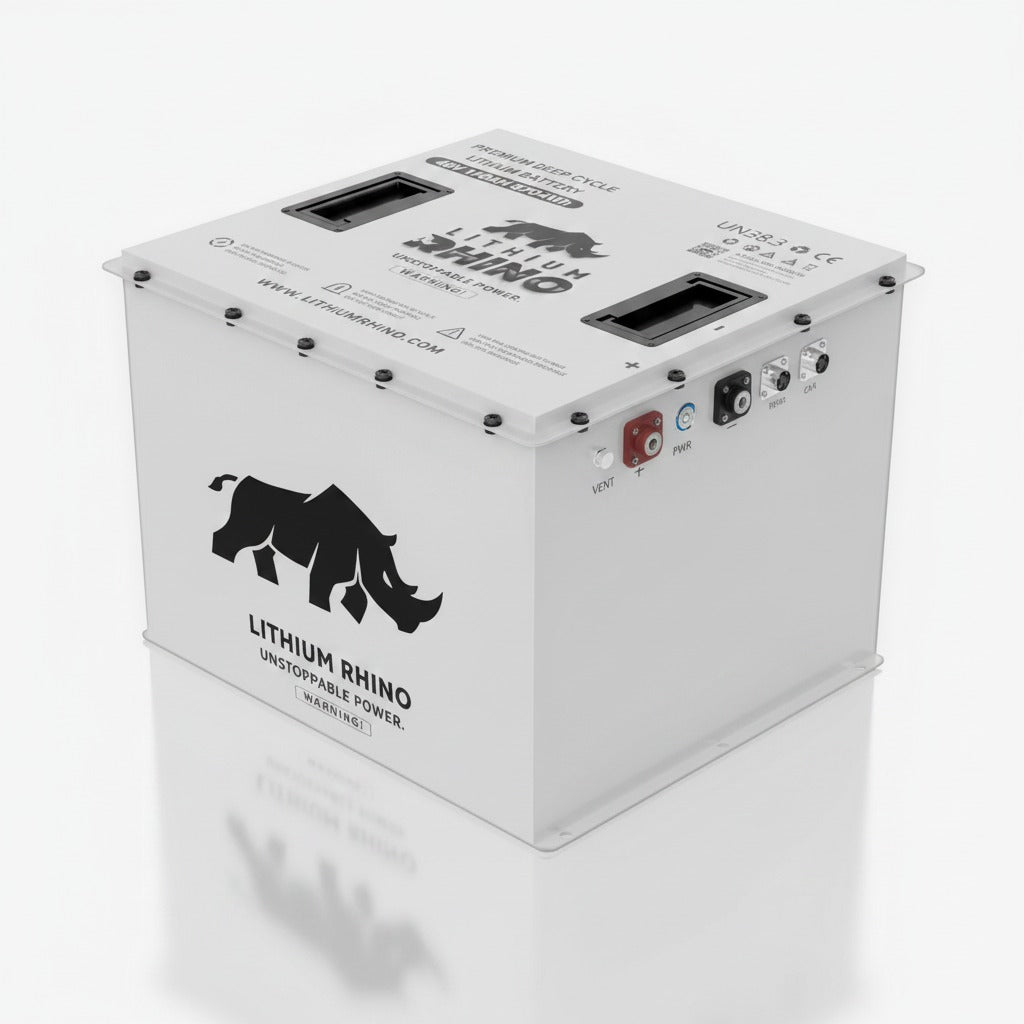

Lithium Rhino LR51V170AH 48V 170Ah Lithium Golf Cart Battery Conversion Kit – 300A BMS, Self-Heated LiFePO4 8.7kWh

Put a lift kit and oversized tires on a cart, load it with people or gear, and aim it up a long hill, and the battery has to push far more current than it ever did on a flat cart path. The Lithium Rhino LR51V170AH is a 48V 170Ah lithium golf cart battery made for that cart. It pairs 170 amp-hours of LiFePO4 with a battery management system rated for 300 amps continuous and 700 amps peak.

Here's why the continuous rating matters. It's the current the pack can deliver steadily, minute after minute, and when a heavy cart asks for more than a smaller BMS allows, the battery shuts itself off to protect the cells, often partway up a climb. A 300A rating gives a lifted or hard-working cart room to pull without tripping that cutoff.

Lithium Rhino rates this kit for 74 miles on a charge. Treat that as a best case; lift height, tire size, passengers and terrain all take their cut. The pack also warms its own cells before it charges in freezing weather, which counts for a hunting buggy that spends November in an unheated pole barn somewhere in Geauga County.

What This 48V 170Ah Lithium Battery Replaces

One battery takes the place of your cart's entire 48V lead-acid bank, whether that's six 8-volt batteries or four 12-volt batteries. The weight of that bank comes off the cart, and so does the watering routine and the corroded cable ends. Leave the old lead-acid charger in the garage. Its charging profile is wrong for lithium, so this kit includes a 25A lithium charger that plugs into a standard 110V outlet through the charge port adapter.

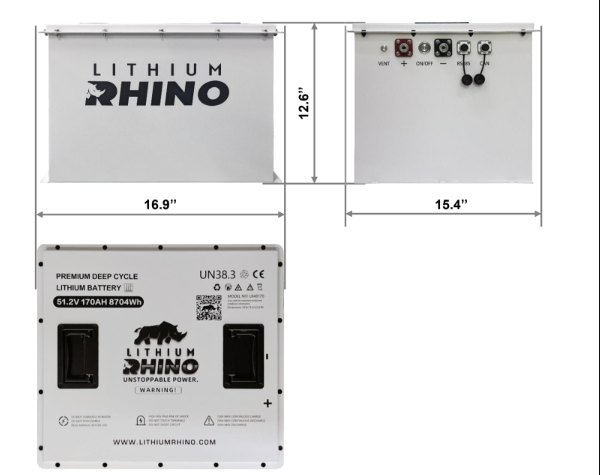

Check the size before anything else. At 16.9 x 15.4 x 12.6 inches, this is a big, tall box, and Lithium Rhino says it fits most carts. Most isn't the same as yours. Call us with your cart's year, make and model and we'll check it before you buy. A typical install runs 2 to 4 hours.

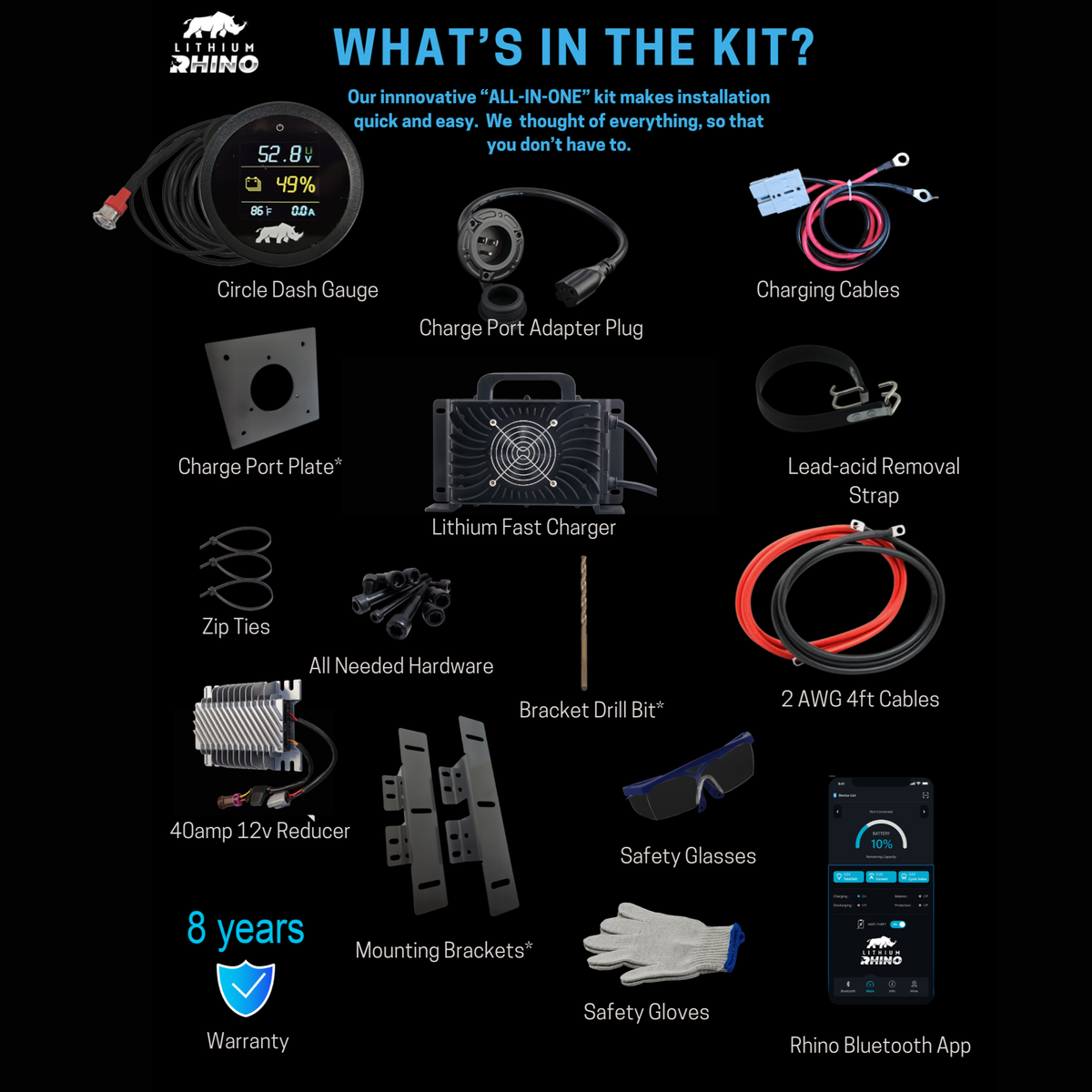

What's in the Kit

• 48V 170Ah self-heated LiFePO4 battery with 300A BMS and high-current relay switch
• 25A lithium fast charger
• 50A 12V reducer for lights and accessories
• Round color gauge
• Charge port adapter and adapter plate
• 2 AWG pure copper cables, 48 inches
• Mounting brackets, drill bit and hardware
• Lead-acid removal strap
• Safety gloves, safety glasses and zip ties
• Decal plate
• Bluetooth access to the free Rhino app

Applications

• Lifted golf carts running oversized tires
• Carts with upgraded motors that draw more current
• Carts that climb steep driveways, hilly neighborhoods and campground roads
• 48V LSVs and neighborhood carts that carry full loads
• 48V hunting buggies and utility carts (the round gauge fits the factory dash on Bad Boy Buggies and Polaris EV)

Not for boats. The case is IP65 splash-proof, which handles rain and a wet trail. It is not rated for marine use. If you need a lithium battery for a trolling motor, ask us about a marine pack instead.

Key Features

• 300A continuous BMS for high-draw carts
• Self-heating cells that warm up before charging below freezing
• 170Ah capacity, 8,704 watt-hours
• Grade-A LiFePO4 prismatic cells rated for 6,000+ cycles
• Rhino app over Bluetooth shows state of charge, voltage, per-cell temperature, fault alerts and cycle history
• Cell balancing within ±20mV
• Dual CAN and RS485 communication ports

Specifications

Downloadable Resources

• LR51V170AH Spec Sheet / Dimension Drawing

Warranty: 8 Years on the Battery

Lithium Rhino backs the battery (cells, BMS and built-in electronics) for eight years from the date you buy it, and the claim runs through our counter:

• Years 1–6: repair or replacement at no cost to you, shipping included.
• Years 7–8: repair or replacement for a flat $500 deductible; Lithium Rhino covers the rest.
• Kit components (the charger, 12V reducer, gauge, cables and switches): two years of full replacement, then replacement at half of current list price for the life of the battery.

Register the battery with Lithium Rhino within 120 days of purchase. An unregistered battery is covered for one year only; we'll do the registration with you at the counter. Physical damage, water intrusion, improper installation and charging with a charger Lithium Rhino hasn't approved are not covered, so stay with the charger that came in the kit.

Local Pickup for Geauga and Lake County Carts

This kit is pickup only, from our shop in Willoughby. Plenty of the carts it suits live out past Chesterland, Chardon and Burton, on hunting ground and hilly back roads. Bring us the year, make and model first, and we'll have the fit worked out before you hitch the trailer.
