Lithium Rhino LR51V120AH 48V 120Ah Lithium Golf Cart Battery Conversion Kit – LiFePO4 6.1kWh

Some carts get driven to the clubhouse and back. Others leave the garage Friday night and don't come home until Sunday, hauling kids, coolers and firewood around a campground the whole time. The Lithium Rhino LR51V120AH is a 48 volt lithium golf cart battery for the second kind of cart. Lithium Rhino rates it for 40 to 50 miles per charge, roughly ten miles past its 105Ah packs, and it ships as a full conversion kit.

Range on a golf cart comes down to amp-hours you can actually use. A lead-acid bank has to stay well above empty or it wears out early, and its voltage sags as it drains, so the cart feels slower by mid-afternoon. This 120Ah LiFePO4 pack delivers steady voltage almost all the way down, which means the last few miles feel like the first few. You can see exactly where you stand in the Rhino app or on the included dash gauge, so you know before you head out to the far loop if there's enough left to get back.

What This 48V 120Ah Lithium Battery Replaces

One 120-pound battery takes the place of your cart's six 8V or four 12V lead-acid batteries. The watering, the corroded terminals and the long overnight charge go away with them. So does the lead-acid charger: it charges on the wrong profile for lithium, and the kit's 25A matched charger replaces it.

Fit: Check Your Cart First

This is a long battery, 22.1 inches end to end, so the tray matters.

• Fits most: Yamaha, ICON and EZ-GO TXT carts
• Does not fit: Club Car DS

If you drive a Club Car DS, the LR51V120AH is the wrong battery, and we'd rather tell you now. Look at the Lithium Rhino LR51V105AH-CUBE instead, which was built to clear that tray. For any other cart, call us with your cart's year, make and model and we'll check it before you buy. Installs usually take two to four hours.

What's in the Kit

• LR51V120AH 48V 120Ah LiFePO4 battery
• 25A fast charger
• 40A 12V DC converter for lights and accessories

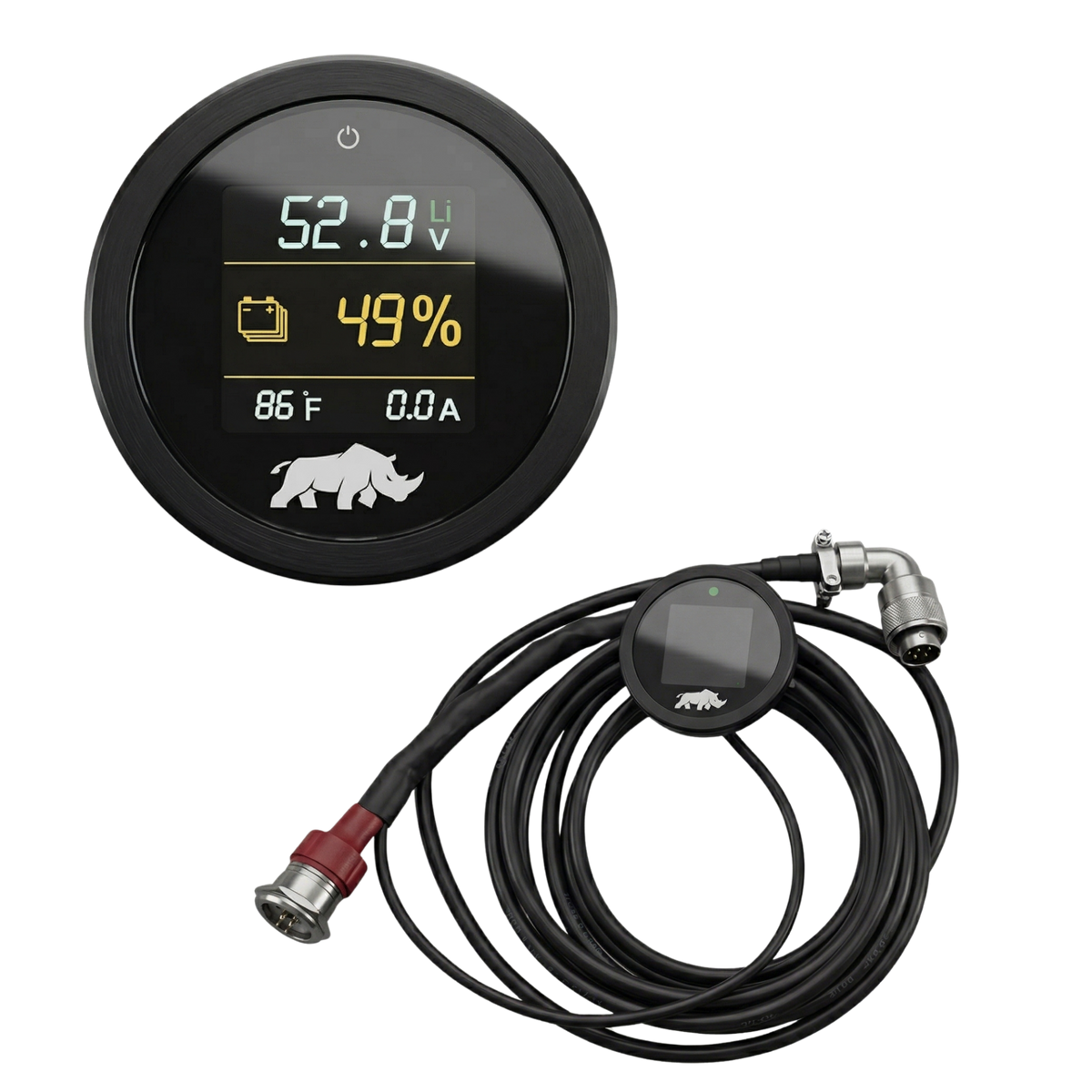

• Round color multi-screen gauge
• Charge port adapter
• Heavy-gauge wires
• Mounting brackets, drill bit and hardware
• Lead-acid removal strap
• Safety gloves and glasses
• Access to the free Rhino app (iOS and Android)

Applications

• 48V golf carts that cover long days: campgrounds, large properties, retirement communities
• 48V LSVs and neighborhood carts
• Hunting buggies running 48V systems
• Lake-lot and cottage carts

Weekend carts at the lake lots around Madison and the campgrounds near Burton rack up miles without anyone noticing, and that's where the extra capacity earns its keep. The pack is IP65 splash-proof, fine for rain and wet grass, but it is not built for marine use.

Cart stored in an unheated barn over winter? Like any lithium battery, this one won't accept a charge below freezing. The BMS waits until the cells warm up. If you plan to charge in the cold, the self-heated LR51V120AH-HEATED is the better choice.

Key Features

• 6,144Wh of stored energy in one pack
• Grade-A LiFePO4 prismatic cells rated for 6,000+ cycles
• 200A continuous / 500A peak battery management system
• Bluetooth to the Rhino app: live state of charge, voltage, per-cell temperature, fault alerts and cycle history
• Cell balancing within ±20mV
• Operates from -4°F to 140°F

Specifications

Downloadable Resources

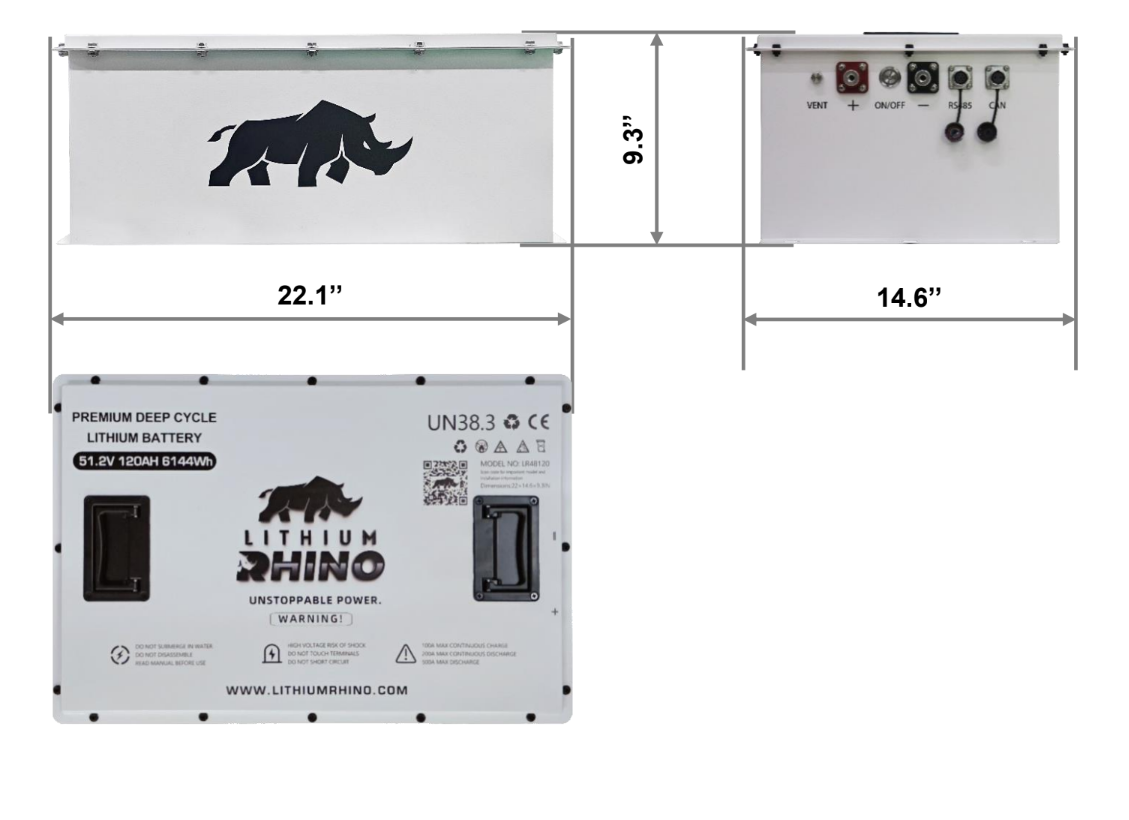

• LR51V120AH Spec Sheet / Dimension Drawing

Warranty: 8 Years on the Battery

Lithium Rhino backs the battery (cells, BMS and built-in electronics) for eight years from the date you buy it, and the claim runs through our counter:

• Years 1–6: repair or replacement at no cost to you, shipping included.
• Years 7–8: repair or replacement for a flat $500 deductible; Lithium Rhino covers the rest.
• Kit components (the charger, 12V reducer, gauge, cables and switches): two years of full replacement, then replacement at half of current list price for the life of the battery.

Register the battery with Lithium Rhino within 120 days of purchase. An unregistered battery is covered for one year only; we'll do the registration with you at the counter. Physical damage, water intrusion, improper installation and charging with a charger Lithium Rhino hasn't approved are not covered, so stay with the charger that came in the kit.

Local Pickup Near Mentor and Kirtland

You'll pick this kit up at our Willoughby shop, an easy run over for cart owners in Mentor, Kirtland or Concord. Tell us what cart it's going in when you call. We'll confirm it fits and have the whole kit boxed and waiting.
