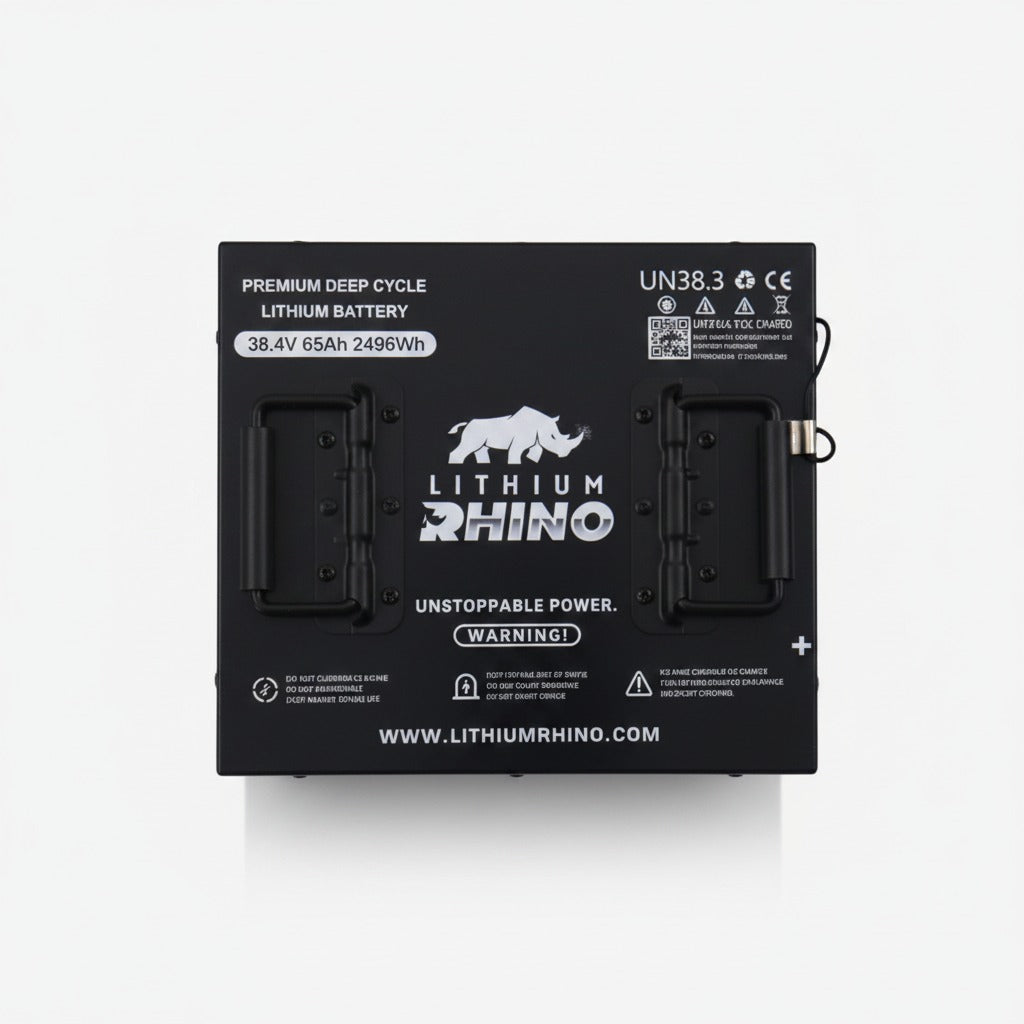

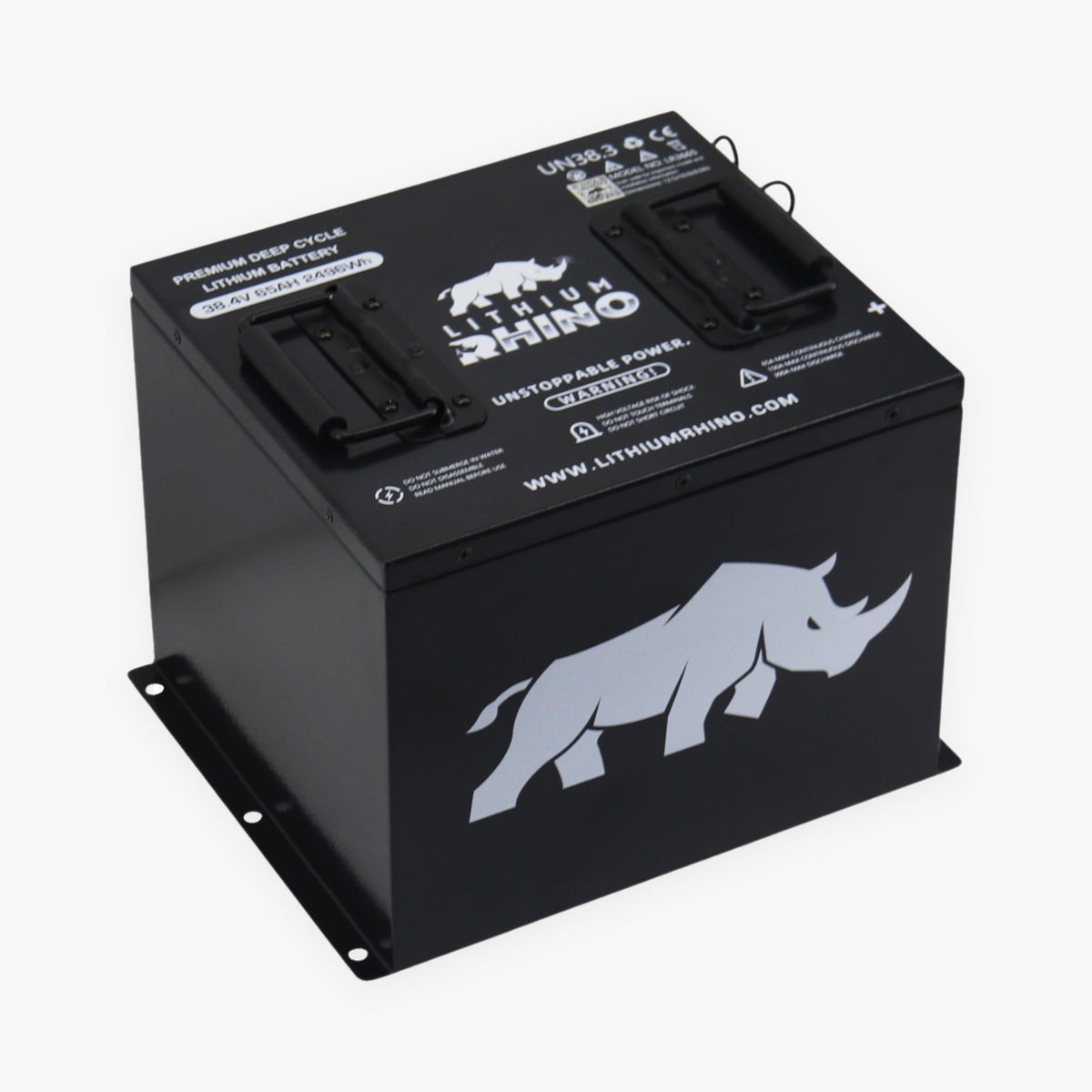

Lithium Rhino LR38V65AH 36V 65Ah Lithium Golf Cart Battery Conversion Kit – LiFePO4 2.5kWh

Six 6-volt batteries, a jug of distilled water and a wire brush for the corroded posts: that's the upkeep on most 36V carts, and it gets old. The Lithium Rhino LR38V65AH is a 36 volt lithium golf cart battery that replaces the whole bank with one LiFePO4 battery about the size of a single battery you're pulling out.

That size is the reason to pick this kit. The battery measures 12.5 by 10 by 9 inches and weighs about 50 pounds, so it sits in the footprint of one old lead-acid battery and secures with the mounting hardware in the box. You don't drill anything and you don't fabricate brackets. The rest of the tray is simply open. There are no caps to check and no acid on the terminals, and the cart sheds most of the weight it used to haul around under the seat.

Leave the old lead-acid charger on the garage shelf. Lithium charges on a different profile, so the kit comes with its own fast charger, about 20A, that plugs into a regular 110V outlet through the included charge port adapter.

What This 36V Lithium Golf Cart Battery Conversion Kit Replaces

One LR38V65AH takes the place of six 6V flooded batteries in a standard 36V cart. Lithium Rhino calls it drop-in for most 36V carts, and "most" is the word to pay attention to, because battery compartments and cable runs change from one model year to the next. Call us with your cart's year, make and model and we'll check it before you buy. A typical install takes two to four hours, and the removal strap in the kit makes lifting the old batteries out a lot less awkward.

What's in the Kit

• LR38V65AH 36V 65Ah LiFePO4 battery
• Fast charger, about 20A
• LCD touch screen gauge with mount
• Charge port adapter plug and charging cable
• Heavy-gauge main cable
• Mounting hardware
• Lead-acid removal strap
• Zip ties, safety gloves and safety glasses
• Access to the free Rhino app over Bluetooth

Where It Works

• Standard 36V golf carts
• 36V neighborhood carts and LSVs, after a fit check
• Campground and lake-lot carts on a 36V system
• 36V utility and hunting carts that make short runs

65Ah is the lighter-duty size. Lithium Rhino rates it for 25+ miles per charge, which covers a round on the course or a summer of evening loops through a Chardon subdivision. If your cart puts in long days or climbs a lot of hills, look at the 36V 105Ah kit instead. It carries more range but takes up more of the tray.

Keep it out of the boat. The case is IP65 splash-proof, fine for rain and wet grass, but it is not a marine battery. We carry IP67 lithium packs for trolling motors.

Key Features

• Grade-A LiFePO4 prismatic cells rated for 6,000+ cycles
• Rhino BMS rated 150A continuous and 500A peak
• Cell balancing to within ±20mV
• Bluetooth to the Rhino app (iOS and Android) for state of charge, voltage, per-cell temperature, fault alerts and cycle history
• Single-battery footprint with no drilling
• Operates from -4°F to 140°F

Specifications

Downloadable Resources

• LR38V65AH Dimension Drawing

Warranty: 8 Years on the Battery

Lithium Rhino backs the battery (cells, BMS and built-in electronics) for eight years from the date you buy it, and the claim runs through our counter:

• Years 1–6: repair or replacement at no cost to you, shipping included.
• Years 7–8: repair or replacement for a flat $500 deductible; Lithium Rhino covers the rest.
• Kit components (the charger, gauge and cables): two years of full replacement, then replacement at half of current list price for the life of the battery.

Register the battery with Lithium Rhino within 120 days of purchase. An unregistered battery is covered for one year only; we'll do the registration with you at the counter. Physical damage, water intrusion, improper installation and charging with a charger Lithium Rhino hasn't approved are not covered, so stay with the charger that came in the kit.
