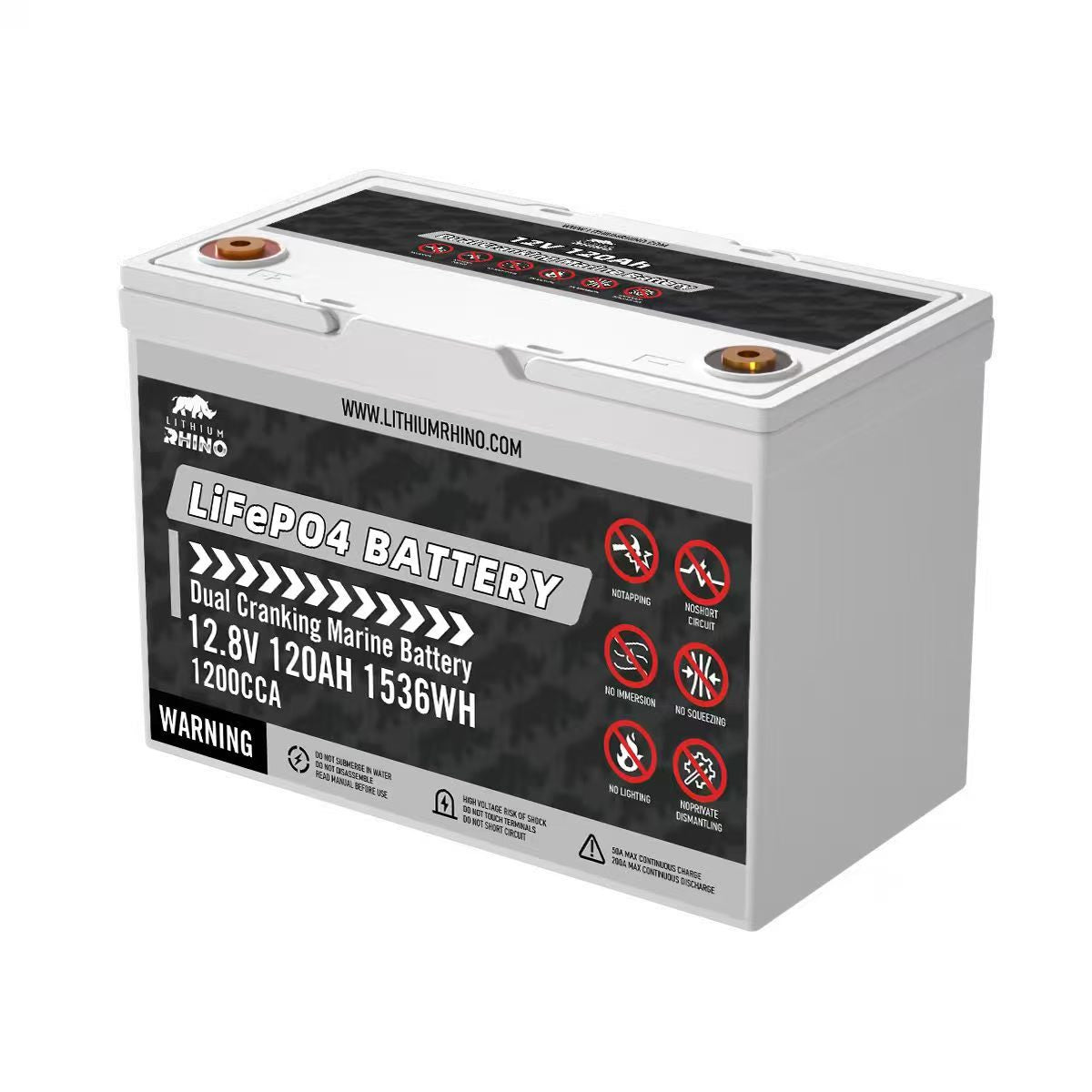

Lithium Rhino LR12V120AH-M 12V 120Ah Dual Purpose Lithium Marine Battery – 1,200 CCA Cranking, LiFePO4 IP67 (Battery Only)

Most boats carry two kinds of battery for two different jobs: a starting battery for the outboard and a deep-cycle battery for everything else. The Lithium Rhino LR12V120AH-M is a dual purpose lithium marine battery built to handle both from one case. It's rated for 1,200 cold cranking amps to turn the motor over and holds 120 amp-hours to run the trolling motor, fish finder, and livewell pump once you're on the water.

A Lithium Marine Starting Battery That Also Runs the House

This is the one battery in the Rhino marine line that cranks an engine. The 24V and 36V Rhino packs are deep cycle only. They'll run a trolling motor all day, but they aren't built for the short, heavy draw an outboard starter asks for. The 12V Dual Cranking model is. Lithium iron phosphate holds its voltage close to full until the pack is nearly spent, so a long morning on the electronics doesn't leave you with a sluggish start at noon.

Then there's the weight. Lithium Rhino ships it at about 30 lb, for 1,536 watt-hours of stored energy plus the cranking rating. If you've lifted a lead-acid starting battery off the deck of a center console, you know that number is a relief.

On the lake, that works out simply. A small aluminum boat with a 12V trolling motor out of Madison or Perry can run one battery for the kicker or outboard and the bow mount together. A bigger boat can use it as the cranking battery and a 12V house battery for the electronics. The dual-layer ABS shell is sealed to IP67, and an LCD on the battery itself shows its charge where you can see it.

Plan your wiring before you order. Lithium Rhino doesn't support series connection on its marine batteries, so two of these can't be joined to power a 24V or 36V trolling motor. For that, the single-case 24V or 36V Rhino is the right battery. Give us a call with your engine and your battery setup, and we'll check it with you first.

What's in the Box

This is the battery only. Unlike the 24V and 36V Rhino marine kits, it does not come with a charger, console gauge or mounting hardware.

• Lithium Rhino 12V 120Ah dual purpose IP67 LiFePO4 battery with on-shell LCD
• Bluetooth connection to the free Rhino app

You will need a 12V charger with a lithium (LiFePO4) profile; the lead-acid charger on the boat now won't do the job. Call us and we'll quote a matched 12V lithium charger, or a waterproof onboard model if you want to leave it wired in.

Applications

• Outboard engine starting (1,200 CCA)
• 12V trolling motors
• 12V house loads: electronics, livewell pumps, lights
• Single-battery setups on small boats that start and troll from the same battery

Key Features

• 1,200 cold cranking amps from a 12V 120Ah LiFePO4 pack
• About 30 lb shipping weight
• IP67 dual-layer ABS marine shell with on-shell LCD
• Rated for 6,000+ cycles
• Battery management system rated 150A continuous / 500A peak
• Bluetooth to the Rhino app for state of charge and voltage

Specifications

Warranty: 8 Years on the Battery

Lithium Rhino backs the battery (cells, BMS and built-in electronics) for eight years from the date you buy it, and the claim runs through our counter:

• Years 1–6: repair or replacement at no cost to you, shipping included.
• Years 7–8: repair or replacement for a flat $500 deductible; Lithium Rhino covers the rest.

Register the battery with Lithium Rhino within 120 days of purchase. An unregistered battery is covered for one year only; we'll do the registration with you at the counter. Physical damage, water intrusion, improper installation and charging with a charger Lithium Rhino hasn't approved are not covered, so make sure the 12V lithium charger you pair with it is one Lithium Rhino approves; ask us before you buy one.

Local Pickup for Lake Erie Boaters

Pick this one up at our Willoughby shop. It's a quick trip for boat owners heading out of Fairport Harbor, Madison, or Perry. Call ahead and we'll confirm one is on the shelf and charged before you make the drive.
